- Achromatic 127mm telescope with stable mount
- D= 127mm; F= 1200mm; F/D= F9.4
- Equat. EXOS-2 mount with a max. load of 13 kg
- GoTo motors + Startracker optional
- Scope of delivery: telescope, mount, tripod, accessories
- Precision mount with ball bearings in all axis
- Telescope for night and solar observation
- Aperture Solar-filter and Smartphone camera adapter included
- Excellent HEXAFOC focuser with 65mm diameter
- Cradle rings with handle and camera holder included
Instruction manual, Eng
Quickstart Guide, Eng, Rus
Solar Filter for Messier Telescopes, Eng
Smartphone Holder manual
Bresser Goto-Kit, manual (optional)
NEW – now including a high-quality aperture Solar-filter for safe observation of sunspots, eclipses and planet transits. Great telescope for night and solar observation.
For the price-sensitive planetary observer the AR-127L is a dream machine. View tiny dots and structures in the cloud bands of Jupiter, small rims and craters on the surface of the moon and details on Mars, including the ice-covered polar regions of our neighbouring planet. Watch Jupiter’s moons dance around the planet and detect the greenish glow of Uranus far beyond Saturns orbit. The combination of large aperture and long focal length provides tack-sharp high-contrast pictures that will impress you every time anew.
CHARACTERISTICS OPTIC
CHARACTERISTICS OPTIC
- Optical design: refractor telescope
- Lens diameter: 127 mm / focal length: 1200 mm / F/9.4
- Maximum recommended magnification: 354x
- High-quality and light gathering achromatic objective lens
- Modern multi-coating of the lenses for a bright and high-contrast image
- Robust aluminium tube construction

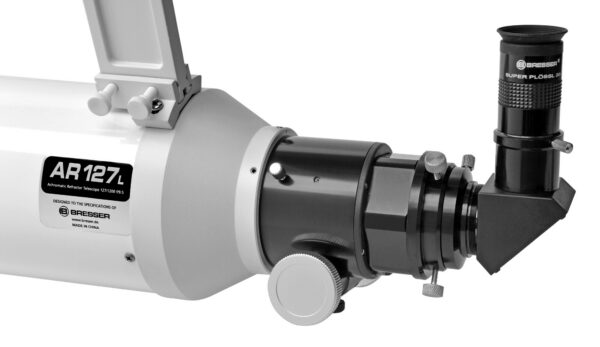

- Very high quality Hexafoc focuser with 2.5″ free inner diameter
- 8×50 viewfinder with crosshair eyepiece; optimised finder mount for comfortable viewing
- 31.7mm (1.25″) zenith mirror
- Hand grip for comfortable transport with integrated camera holder (photo thread screw)
- Prism rail with stainless steel clamping surface (44mm universal dovetail for GP/EQ5/LXD75)
- 50.8 to 31.7mm adapter with integrated T2 adapter (optional T2 ring required)
- Smartphone adapter for celestial navigation included
- Telescope for night and solar observing
CHARACTERISTICS MOUNT
- Stable parallactic mount with fine drive in both axes
- Ball bearings in both axes for more precise movements
- Stable height adjustable stainless steel tripod ( Min. 69cm / Max. 109,5cm )
- Load capacity up to 13 kg payload
- Retrofittable with the Bresser Star Tracker Goto Kit ( item no. 4951750 )
- Circular bubble for easy horizontal alignment
- Pole height scale for setting the latitude
- Scaled graduated circular rings to facilitate finding objects using a star atlas or planetarium software
- Pole finder scope with optional illumination ( item no. 4964212 )
- Tripod weight: 4.7 kg
- Mount weight: 5.6 kg (without counterweight)
- Total weight incl. counterweight: 14.8 kg
- Batteries: not included
Scope of delivery
- optical tube
- 26mm Super Plössl eyepiece (31.7mm / 1.25″)
- 31.7mm (1.25″) zenith mirror
- integrated 31.7 mm and T2 adapter
- Prism rail with stainless steel clamping surface (44mm universal dovetail for GP/EQ5/LXD75)
- 8×50 viewfinder
- Rotatable star chart
- Lens solar filter
- Tube clamps with carrying handle and camera mount
- Smartphone camera adapter
- Astronomy PC software Stellarium (via download)
- Bresser EXOS-2 mount
- 1 x 4.5 kg counterweight
- Stainless steel tube field tripod with accessory tray
Technical Data
| FIELD OF APPLICATION | |
|---|---|
| Field of application |
|
| FOCUS GROUP | |
| Focus Group |
|
| PRODUCT FAMILY | |
| Product Family | Refractor telescope |
| OPTICAL SPECIFICATIONS | |
| Optical design | Achromatic Refractor |
| Magnification from | 46 |
| Maximum recommended magnification | 254 |
| Mirror/Lens diam. | 127 mm |
| Focal length | 1200 mm |
| Angular resolution | 1 arc seconds |
| Type of coating | Multi coated |
| Finderscope | 8 x 50 mm |
| GENERAL TECHNICAL DATA | |
| Material OTA | Aluminium |
| Polefinder scope | included, illumination optional |
| Fine movements | Manual (RA and DEC) |
| Material tripod3 | Stainless Steel |
| Focusing system | 2.5″ Hexafoc |
| Colour | white |
| Dust protection caps | Dust protection caps for front lens and eyepiece holder |
| Mount Type | German/Equatorial Mount |
| Product series | Messier |
| Extended warranty | 10 years |
| DIMENSIONS & WEIGHTS | |
| Net weight OTA (incl. accessories) | 7.9 kg |
| Total length | 100 cm |
| Total width | 100 cm |
| Total height | 185 cm |
| Height (cm) from | 69 |
| Height (cm) up to | 109 |
| Tripod height adjustment | ✓ |
| Maximum load capacity | 13 kg |
| Net weight mount (incl. accessories) | 5.6 kg |
| Net weight tripod (incl. accessories) | 4.7 kg |
| Counterweight | 4.5 kg |
