Compact, well-equipped biological microscope
- transmitted light microscope for high demands
- dimmable LED illumination
- magnification: 40x-1000x
- height-adjustable condenser with iris diaphragm
- scope of supply: miscroscope, accessories
BRESSER Researcher Bino 40-1000x Microscope – manual
Инструкция по эскплуатации

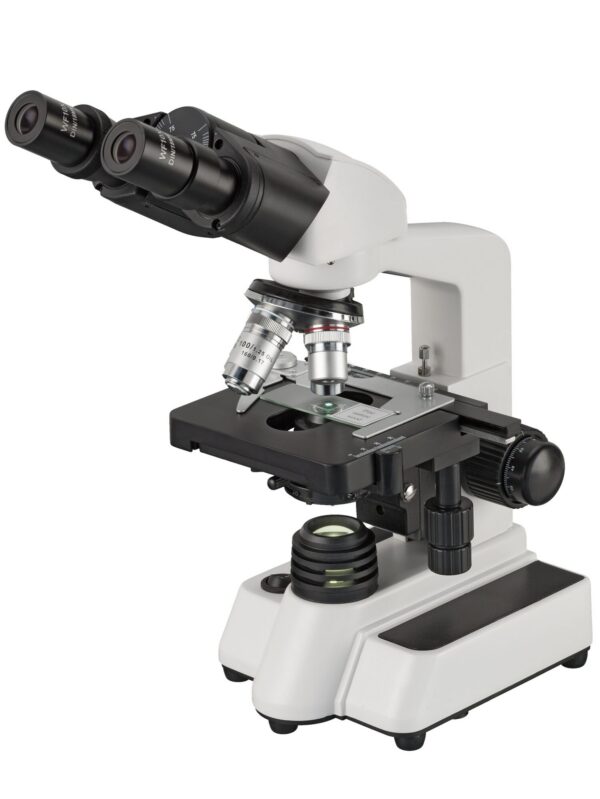

The Researcher Bino is a professional microscope with transmitted illumination, equipped with brilliant optics, a robust metal body and precise workmanship. It is perfect for use in school, studies, and occupation. The comfortable binocular head provides an exceptional bright image and can be individually adjusted according to the observer’s needs. The objective turret, is fitted with 4 DIN objectives and offers a large variety of magnification possibilities. Focussing is done through the use of the coarse and fine adjustment wheels. The illuminator and the double-lens condensor with iris diaphragm guarantee the perfect illumination of the observed object.
Features
• Type: Biological microscope
• View: Binocular Comfortable binocular view, 360° turnable head
• Application range: Biology, Botany, Education, Teaching, Entomology
• Illumination: LED Transmitted
• Level: Intermediate, Expert
• Warranty: 5 years
• Double-lens condensor with iris diaphragm
• Incl. mechanical stage
• Adjustable eye relief
Specifications
• Magnifications: 1000x max, 40-1000x Zoom
• Eyepieces: WF 10x
• Eyepiece diameter: 23.2 mm
• Objectives: 4x, 10x, 40x, 100x (oil immersion)
• Power supply: 220/240V
Included Accessories
• 4 DIN-objectives
• 1×2 eyepieces
• Mechanical stage
• Condensor
• Binocular head
• Immersion oil
Technical Data
| FIELD OF APPLICATION | |
|---|---|
| Field of application |
|
| FOCUS GROUP | |
| Focus Group |
|
| OPTICAL SPECIFICATIONS | |
| Optical design | Biological |
| Magnification from | 40 |
| Magnification up to | 1000 |
| ELECTRONICS, HARDWARE & SOFTWARE | |
| Lighting5 | Transmitted light |
| Dimmer | Dimmable lighting |
| GENERAL TECHNICAL DATA | |
| Eyepiece Barrel Diameter | 23.2 mm |
| View | Binocular |
| Body material | Aluminium/plastic |
| Product series | Researcher |
| Extended warranty | 5 years |
| DIMENSIONS & WEIGHTS | |
| Total length | 280 mm |
| Total width | 175 mm |
| Total height | 360 mm |
| Net Weight total (incl. accessories) | 3.8 kg |
